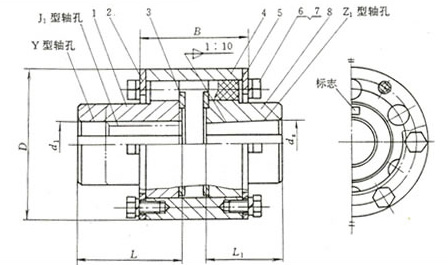

ZLD(LZD)圆锥轴孔柱销齿式联轴器基本参数与主要尺寸：(GB/T 5015-85) mm
|
型 号 |
公称转距 Tn N.m |
许用转速[n] r/min |
轴孔直径 d1,d2 |
轴孔长度
Y,J1,Z1 |
D |
B |
转动惯量 kg.㎡ |
质量 kg |
|
L,L1 | ||||||||
|
ZLD1 |
100 |
4000 |
12-24 |
20-52 |
76 |
52-54 |
0.007 |
0.73 |
|
ZLD2 |
250 |
4000 |
16-32 |
30-82 |
90 |
60-70 |
0.004 |
3.9 |
|
ZLD3 |
630 |
4000 |
25-42 |
44-112 |
118 |
85-95 |
0.015 |
8.6 |
|
ZLD4 |
1600 |
4000 |
40-60 |
84-142 |
158 |
115-122 |
0.057 |
18.1 |
|
ZLD5 |
4000 |
4000 |
50-80 |
84-172 |
192 |
115-122 |
0.14 |
29.2 |
|
ZLD6 |
6300 |
3300 |
60-85 |
107-172 |
230 |
144-149 |
0.31 |
47.2 |
|
ZLD7 |
10000 |
2900 |
70-110 |
107-212 |
260 |
146-156 |
0.62 |
73 |
|
ZLD8 |
16000 |
2500 |
80-130 |
132-252 |
300 |
167-177 |
1.29 |
115 |
|
ZLD9 |
25000 |
2300 |
90-125 |
132-212 |
335 |
187-192 |
2.1 |
151 |
|
ZLD10 |
31500 |
2100 |
100-170 |
167-302 |
355 |
194-209 |
3.1 |
196 |
|
ZLD11 |
40000 |
2000 |
110-180 |
167-302 |
380 |
214-229 |
4.3 |
237 |
|
ZLD12 |
63000 |
1700 |
130-170 |
202-302 |
445 |
231-241 |
9.9 |
399 |
|
ZLD13 |
100000 |
1500 |
150-220 |
202-352 |
515 |
262-282 |
16.6 |
502 |
