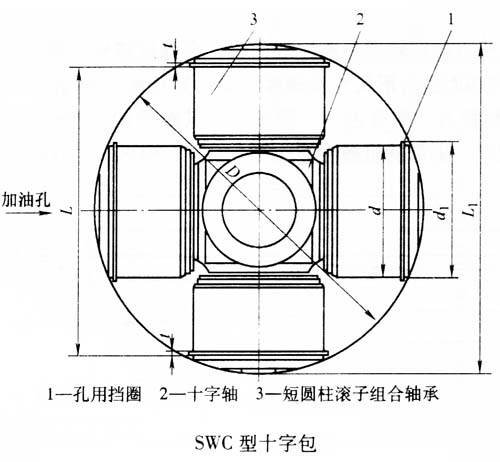

SWC万向联轴器用十字包的主要尺寸：mm
|
型号 |
回转直径
d |
L |
D |
D1 |
t |
L1 |
|
SWC-B100 |
100 |
86.5 |
38 |
40.8 |
1.75 |
100 |
|
SWC-B120 |
120 |
105 |
45 |
48.5 |
2 |
118 |
|
SWC-B150 |
150 |
133 |
55 |
59.2 |
2.5 |
145 |
|
SWC-B180 |
180 |
158.5 |
75 |
79.5 |
3 |
177.5 |
|
SWC-B225 |
225 |
198 |
90 |
95.5 |
3.5 |
217 |
|
SWC-B250 |
250 |
224 |
95 |
100.5 |
3.5 |
248 |
|
SWC-B285 |
285 |
255 |
110 |
117 |
4 |
284 |
|
SWC-B315 |
315 |
283 |
120 |
127 |
4 |
313 |
|
SWC-B350 |
350 |
315 |
135 |
142 |
4 |
348 |
|
SWC-B390 |
390 |
343 |
160 |
169 |
4.5 |
387 |
|
SWC-B440 |
440 |
387 |
180 |
189.5 |
5 |
438 |
|
SWC-B480 |
480 |
431 |
200 |
209.5 |
5 |
487 |
|
SWC-B550 |
550 |
483 |
225 |
235 |
6 |
548 |
